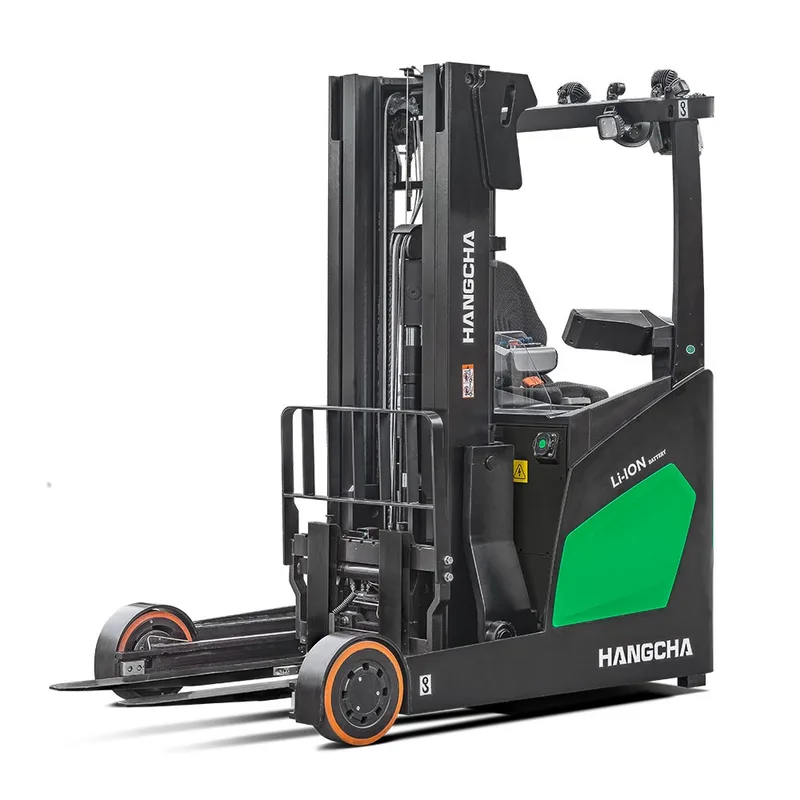

1.4-2.5t XC Series Reach Truck with Lithium Power
Lithium-powered XC series reach truck delivering innovations in design, performance and efficiency.

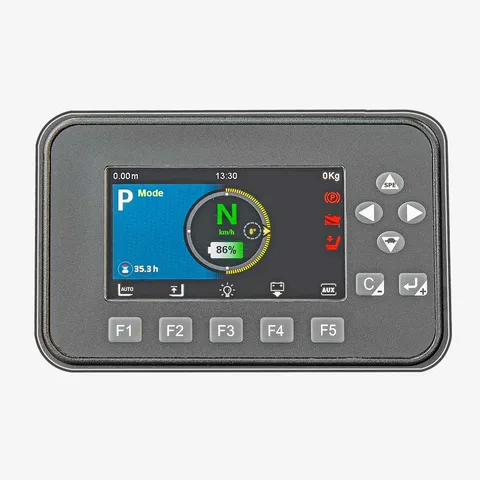

Integrated instrument buttons replace physical controls
Integrated instrument buttons replace physical controls for a cleaner, more efficient interface.

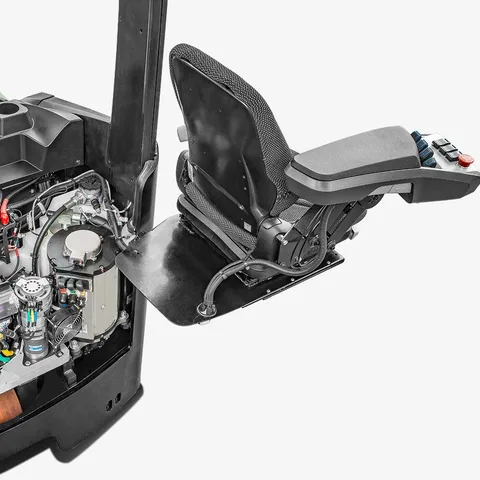

Easy maintenance access
The seat can be turned open at a large angle, which is convenient for maintenance work.

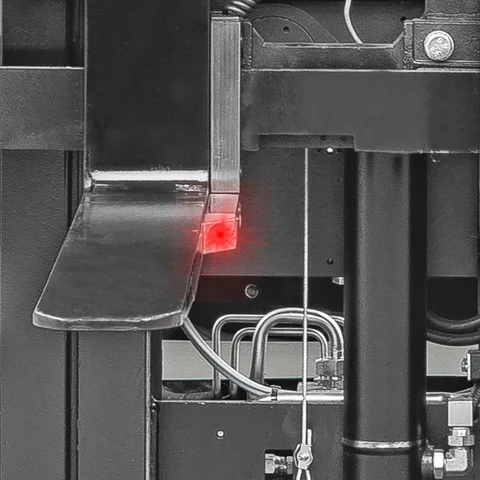

Fork Laser Guidance
Integrated fork-tip lasers project red lines for precise pallet alignment, enhancing safety and stacking accuracy.
Floor Spot Safety
Projects a blue warning dot at blind spots, alerting nearby traffic at intersections or aisle ends.

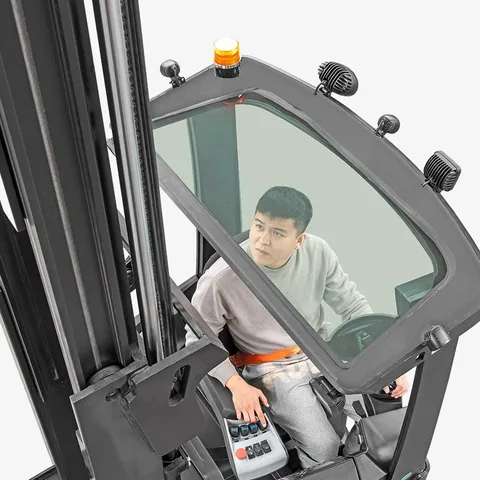

Panoramic Visibility
Crossbeam-free roof design ensures unobstructed views of forks and loads.
Features
Other specifications
| Product Type | Reach Trucks |
|---|---|
| Load Capacity | 1400-2500kg |
| Lift Height | 2700~13000mm |
| Service Weight | 3,130~3,340kg |
| Dimensions (L/W/H) | L: 2463~2553 * W: 1270 * H: 2240mm |
| Turning Radius | 1735~1804mm |
| Gradeability | 12% |
| Travel Speed | 10.2km/h |
| Battery Voltage (STD) | 80V/271Ah |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
