‹ Back to products

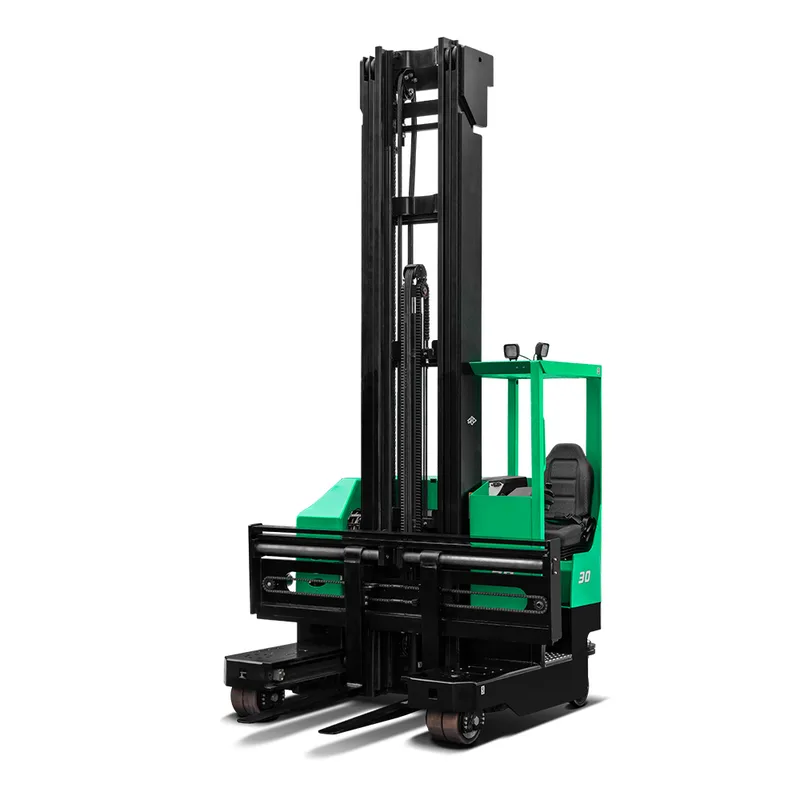

2.0~3.0t X series electric all-directional reach truck image 1 of 7
VNA (Very Narrow Aisle) · All-directional reach

2.0~3.0t X series electric all-directional reach truck

All-directional reach truck for handling long, bulky materials in narrow aisles.

Load capacity2000-3000kg
Lift height4000~8500 mm
PowerLi-Ion

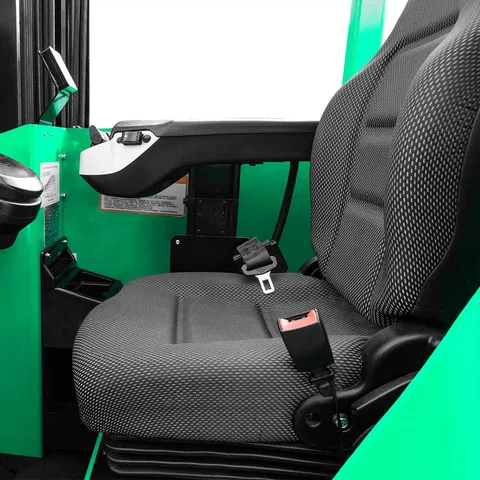

Ergonomic fingertip hydraulic controls provide smooth

Ergonomic fingertip hydraulic controls provide smooth

Ergonomic fingertip hydraulic controls provide smooth, responsive operation, enabling precise load handling and enhanced operator productivity.

Built with a low centre

Built with a low centre

Built with a low centre of gravity and a robust four-point chassis design, the X Series delivers outstanding stability and confidence when handling heavy loads at height.

Features

Other specifications

Product TypeReach Trucks
Load Capacity2000-3000kg
Lift Height4000~8500 mm
Service Weight4080~4320 kg
Dimensions (L/W/H)L: 2351mm * W: 1850mm * H: 2960mm
Turning Radius1873mm(Straight mode)/1850mm(Sideways travel mode)/1460mm(360º travel mode)
Gradeability12%
Travel Speed11.5/12 km/h
Battery Voltage (STD)80V/250Ah

Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.

Want this spec'd for your site?

Send us your load, lift height and where it'll run, and we'll match the exact unit and price.
