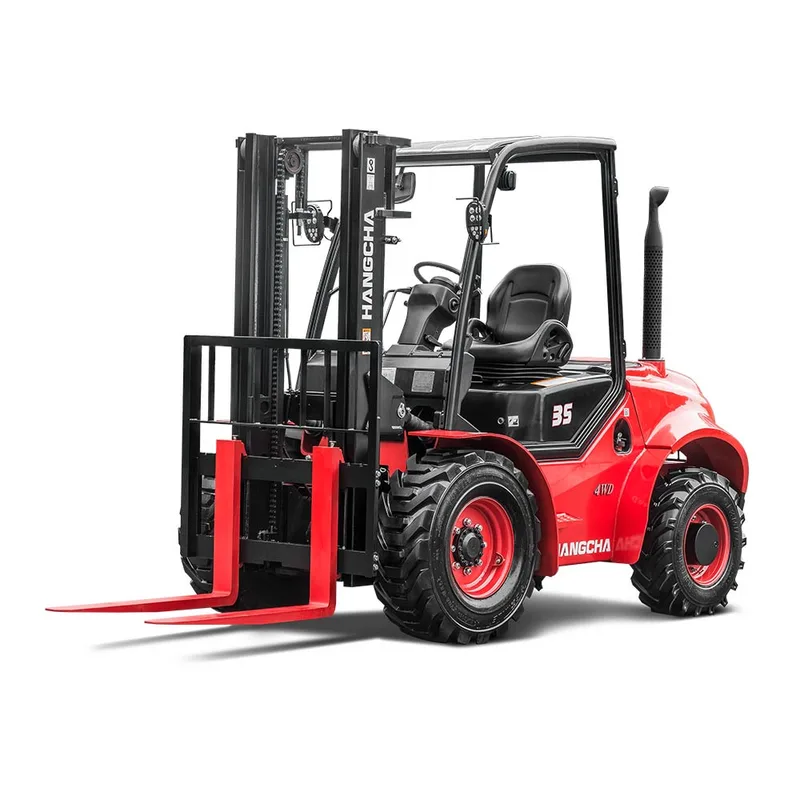

2.5-3.5t 4WD Rough Terrain Forklift
Four-wheel-drive diesel rough terrain forklift for soft ground, slopes and off-road sites, 2.5-3.5 tonne.

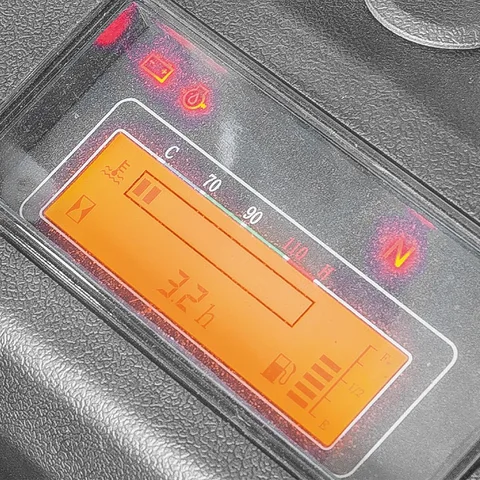

LCD instrument
A newly developed LCD instrument shows the full truck state, fault codes and other key information, so the operator can check condition at a glance and service it easily.

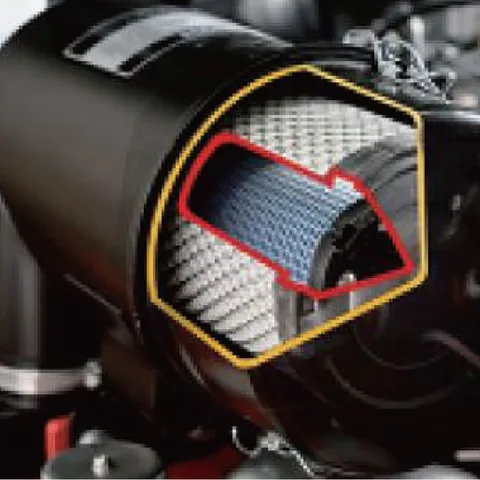

Strong cooling
A dual air filter and extra-capacity combined radiator with a serpentine-wave design and optimised heat-dissipation channel keep the engine reliable in heavy-duty work.

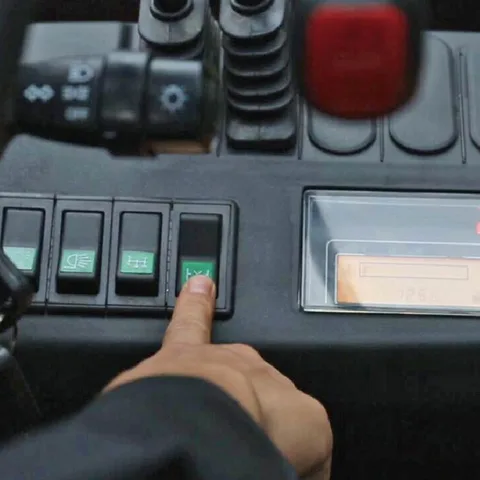

Differential lock
A differential purpose-built for rough terrain, with a manual differential lock, delivers maximum traction in poor weather and on rough ground and stops power being lost when one wheel spins.

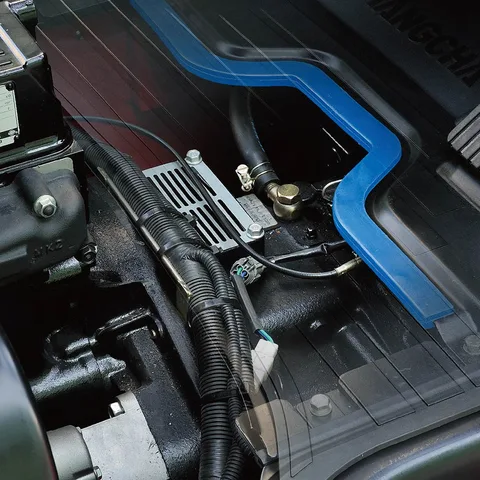

Low vibration
Rubber damping between the overhead guard and frame, plus a compound engine damper and fully floating powertrain, flexibly connect the frame and drivetrain to greatly reduce vibration.

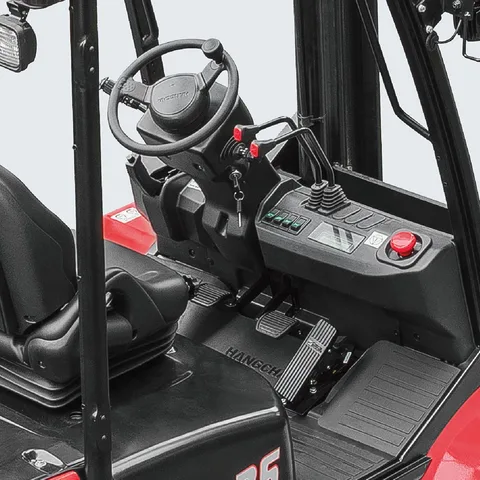

Operator comfort
Extra foot space reduces operator fatigue, a non-slip step makes getting in and out safe and easy, and a new steering wheel, brake system and easy-to-use levers give complete control.
Features
See it in action
Other specifications
| Product Type | IC Trucks, Rough Terrain |
|---|---|
| Load Capacity | 2500-3500kg |
| Lift Height | 0-6000mm |
| Drive | 4WD, Diesel |
| Engine | Kubota V2607-CR-TE5B (47.3kW) |
| Emission Std. | Stage V / Tier 4 Final |
| Front / Rear Tyre | 14-17.5 / 10.0-75-15.3 |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
