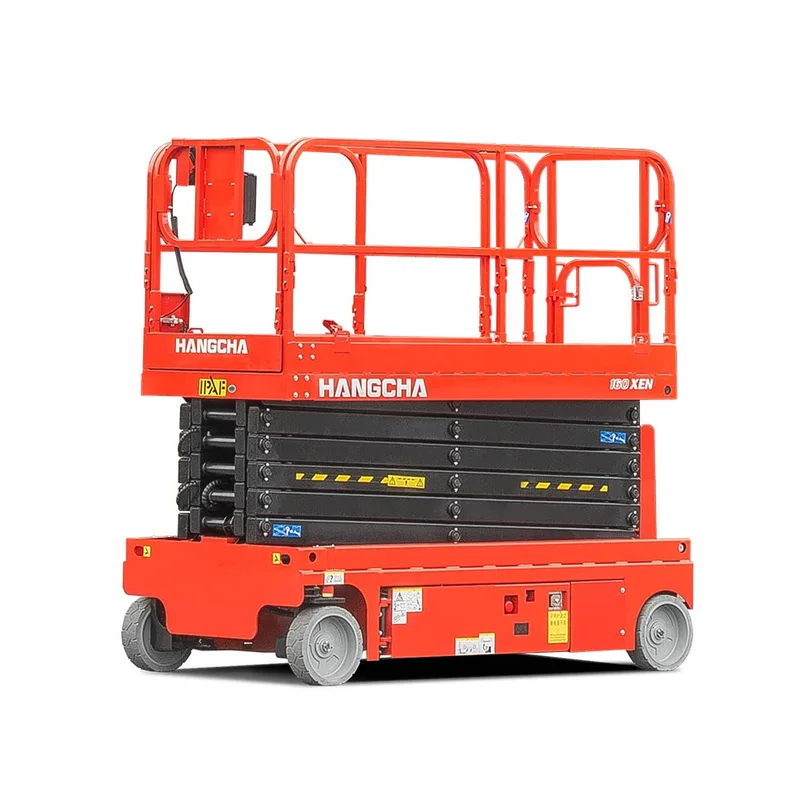

Mini Self-Propelled Scissor Lift (Electric Motor Drive)
Compact self-propelled electric scissor lift for quiet, zero-emission work at height in warehouses, factories and commercial spaces.
Overview
HANGCHA self-propelled electric scissor lifts deliver high-efficiency operation with precision control over lifting, lowering, steering, and movement.

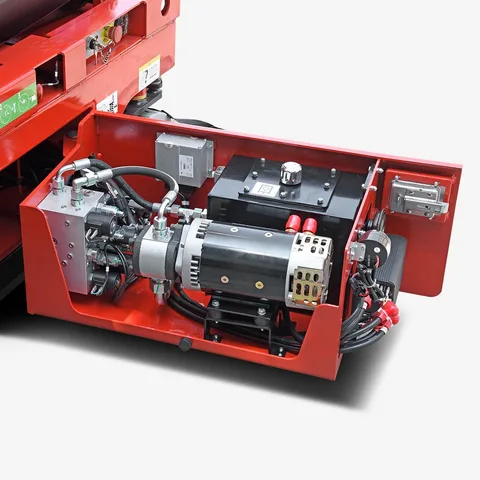

Hydraulic and electric system
A hydraulic and electric system with precision control over lifting, lowering, steering, and movement.

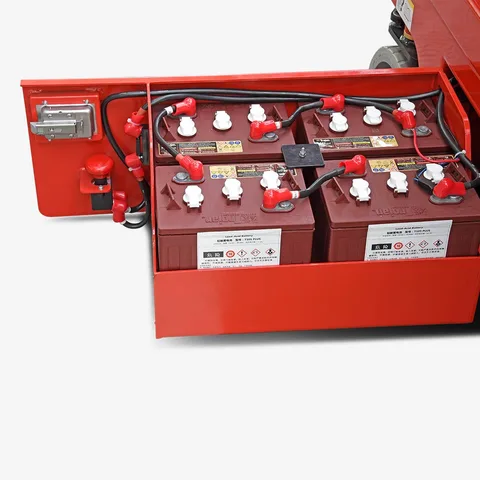

Eco-Friendly & Quiet Operation
HANGCHA's electric drive system ensures zero emissions and ultra-low noise, making it ideal for indoor applications such as warehouses, factories, and commercial spaces. The efficient walking mechanism delivers smooth, clean performance without compromising power or precision.

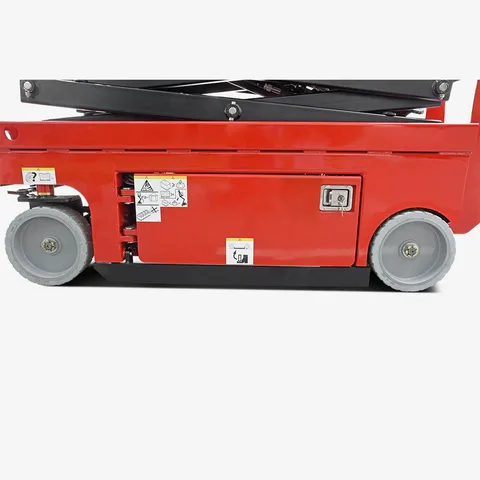

Enhanced Safety with Anti-Overturning System
When the platform exceeds 2m, the automatic anti-overturning system activates, providing stability on uneven surfaces. This fail-safe feature prevents tipping during operation, ensuring operator safety and equipment reliability in challenging environments.

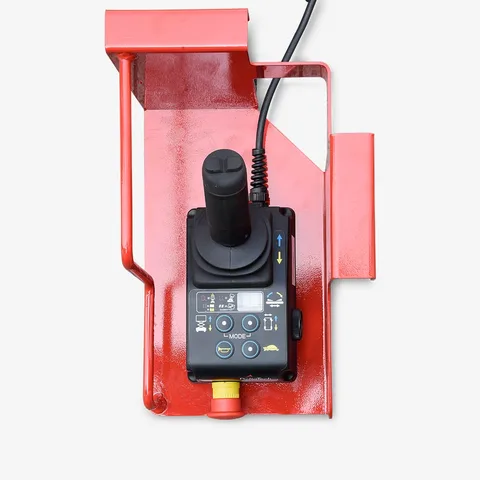

Intuitive Joystick Control
The ergonomic joystick offers precise, responsive handling for seamless lifting, lowering, and movement. Its user-friendly design reduces operator fatigue while enabling accurate positioning for improved productivity.
Features
See it in action
Other specifications
| Product Type | Aerial Platforms, E-Trucks |
|---|---|
| Load Capacity | 100~250kg |
| Lift Height | 5.9-7.6m |
| Service Weight | 900kg/1984lb |
| Dimensions (L/W/H) | L: 57-60 in x W: 30-32 in x H: 81.8-85.8 in |
| Turning Radius | 15.7-17.1 in |
| Gradeability | 30% |
| Travel Speed | 4km/h |
| Battery Voltage (STD) | 24V/80Ah |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
