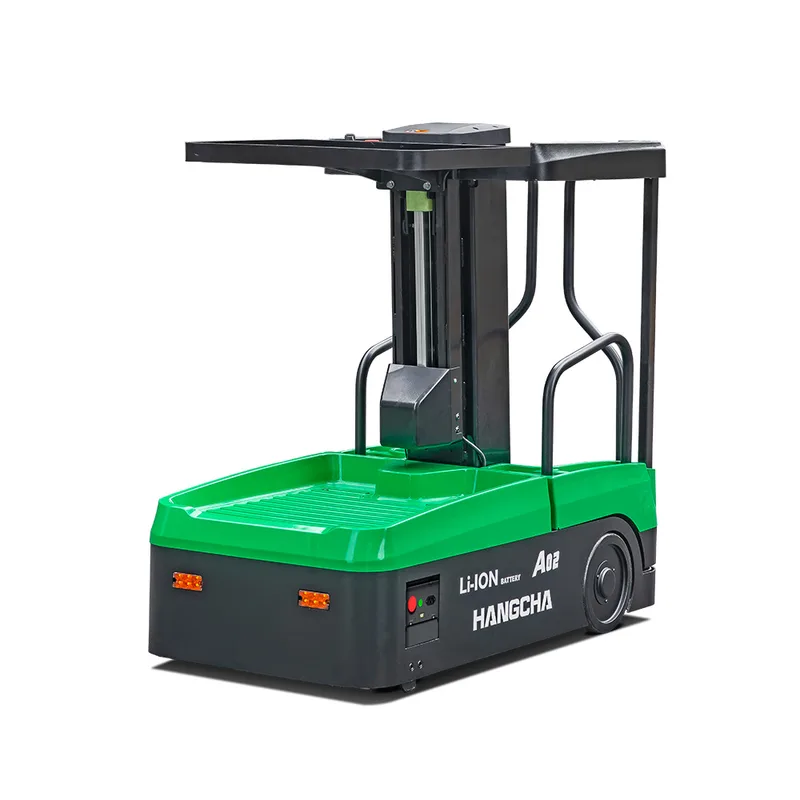

215kg A Series Storage Assist Vehicle
Agile lithium storage assist picker for confined spaces with ANSI-compliant safety systems.

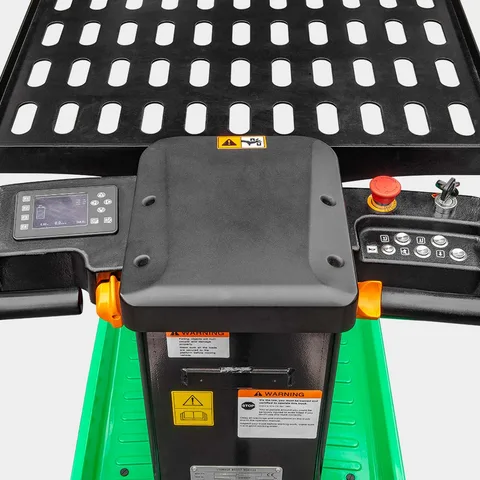

1. Advanced Drive Control
The CANBUS-enabled AC system delivers millimeter-precise load handling with 0-12km/h seamless acceleration, while reducing energy consumption by 20% through regenerative braking technology.

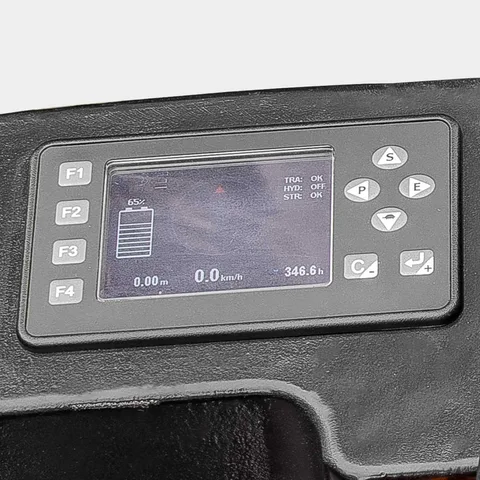

Intelligent Vehicle Monitoring
The multi-function display shows real-time data (speed/battery/errors) via an anti-glare 5" LCD, with color-coded alerts for immediate fault recognition and resolution.
Operator Presence Detection
Dual capacitive hand sensors require constant contact for operation, automatically cutting power if released - meeting ISO 12100 safety standards with 99.9% detection accuracy.

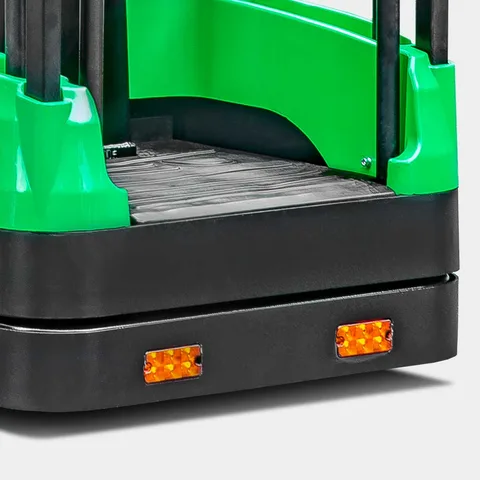

360° Visibility/Safety
Front/rear LED strobes (10,000-lux) and amber side markers provide omnidirectional warning, visible at 50m in low-light conditions per OSHA 1910.178 requirements.

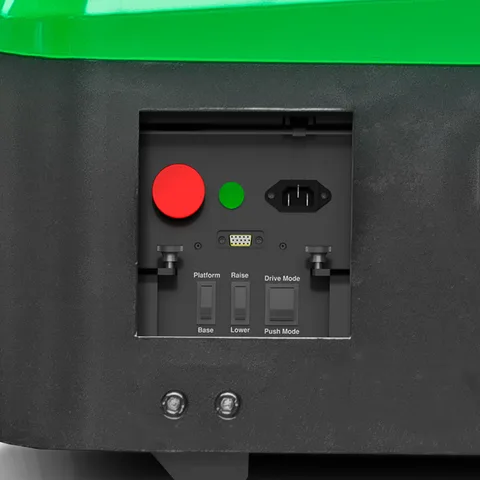

Ergonomic Service Access
The NEMA 4X-rated lower panel enables platform height adjustment and brake disengagement without cab entry, reducing maintenance time by 40% versus traditional designs.
Features
Other specifications
| Product Type | Order Pickers |
|---|---|
| Load Capacity | 100~250kg |
| Lift Height | 0~3700mm |
| Service Weight | 1310kg |
| Dimensions (L/W/H) | 1582* 800* 1468mm |
| Turning Radius | 1343mm |
| Gradeability | 5% |
| Travel Speed | 5.5km/h |
| Battery Voltage (STD) | 24V/125Ah |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
