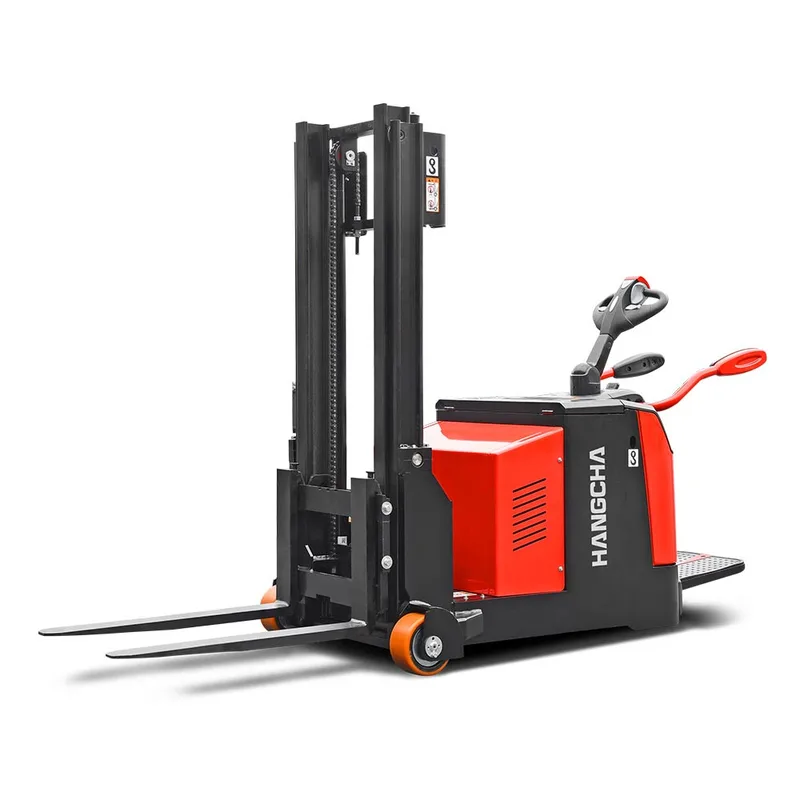

A Series Electric Counterbalanced Pallet Stacker
Electric counterbalanced stacker for tight pallet spacing and lower-level operations.

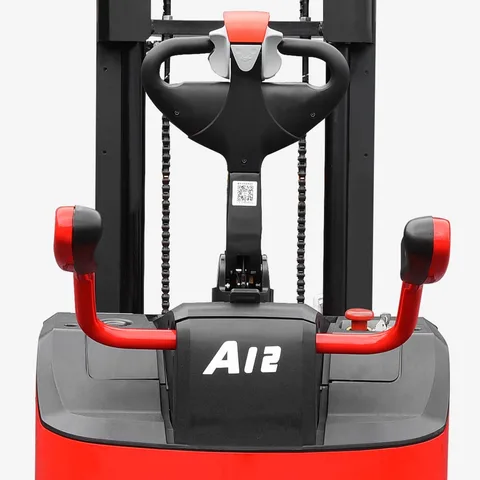

Ergonomic Tiller Design
The sleek, intuitive tiller enhances operator comfort with optimized controls. Its low-profile structure ensures excellent visibility and smooth pallet access for efficient load handling.

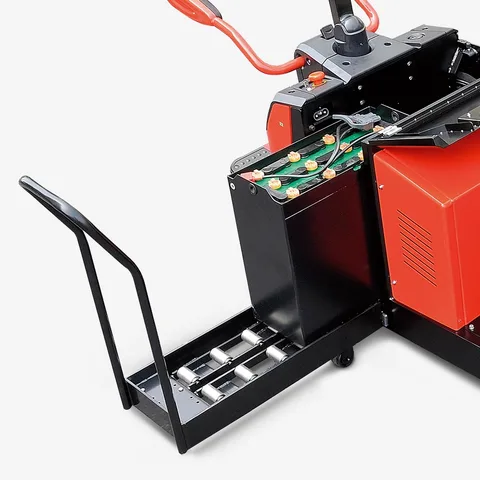

Convenient Battery System
Side-mounted battery access comes standard, enabling quick swaps to minimize downtime and maintain productivity during extended operations.

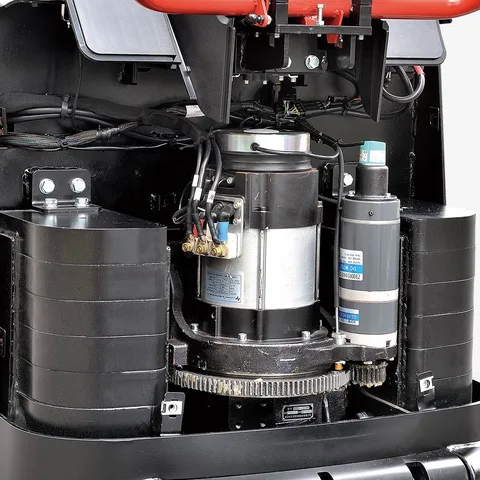

Service-Friendly Construction
A fully openable hood provides unrestricted access to all components, streamlining maintenance and reducing service time for maximum equipment availability.
Precision Mast Control (Optional)
The proportional mast tilt feature allows variable speed adjustment for delicate positioning, improving both safety and handling precision during load placement.
Features
Other specifications
| Product Type | E-Trucks, Pallet Stackers |
|---|---|
| Load Capacity | 800~2,000kg |
| Lift Height | 2000-5500mm |
| Service Weight | 1800-2316kg |
| Dimensions (L/W/H) | L: 2485-3032mm * W: 1030 * H: 1892-1997mm |
| Turning Radius | 1380-1830mm |
| Gradeability | 10% |
| Travel Speed | 5.5/6.0 km/h |
| Battery Voltage (STD) | 24V/240-350Ah |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
